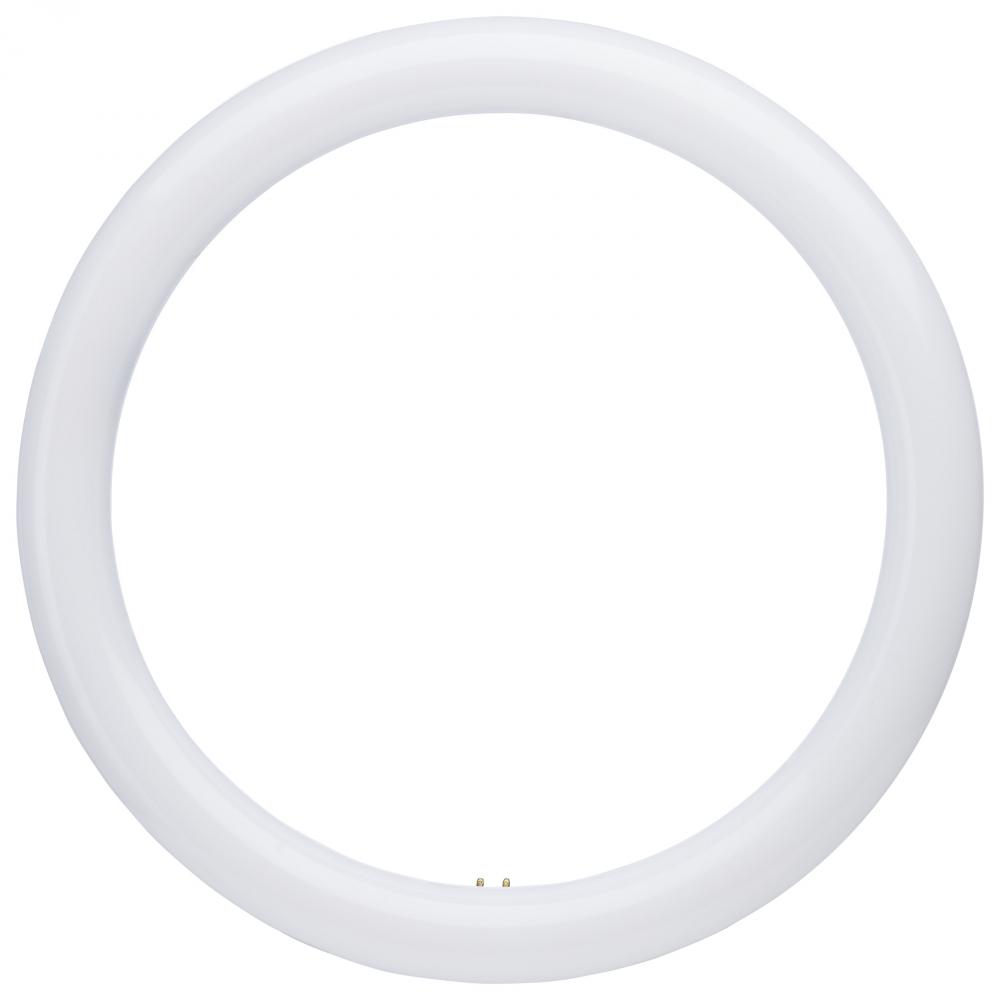

LED Circline; 16 Watt; T9; 3000K/4000K/6500K CCT Selectable; G10q Base; 120-277 Volt (40UTXC2)

Image may not reflect selected features

No Image
Available

LED Circline; 16 Watt; T9; 3000K/4000K/6500K CCT Selectable; G10q Base; 120-277 Volt

Call for Price

Item #:

40UTXC2

Dimensions:

Width: 11.82"

Finish Family:

Frost

Availability:

Manufacturer has 3439 items available.

Description

Details

Downloads

LED Circline; 16 Watt; T9; 3000K/4000K/6500K CCT Selectable; G10q Base; 120-277 Volt

Internal #:

40UTXC2

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

Frosted

Category:

LED

Sub-Category:

LED T9 Circline

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/4000K/6500K

Bulb Shape:

Diameter:

11.82

EA Length:

12.01

Harmonized Codes:

8539.52.0010

Lumens:

1850L/2000L/1950L

Shap Carton Width:

1.38

Ship Carton Height:

12.01

Ship Weight:

0.57

Warranty:

5 Year Limited - 10 hr per day

Weight:

0.57

Ballast Bypass Direct:

Dual

Ballasting Requirements:

Ballast required (Type A, Electronic only) or Ballast Bypass (Type B)

Beam Spread:

180

Bulb ANSI Base:

G10q

Bulb Base:

G10q (4-Pin)

Bulb Finish:

Frost

Carton Cubic Feet:

0.1152

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Daylight

Country Of Origin:

China

CRI:

80+

Efficacy:

115.63/125.00/121.88 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

3 CCT Selectable

Feature 10:

180 Degree Beam Angle

Feature 2:

Range Voltage 120V-277V

Feature 3:

Dual Mode Type A/B

Feature 4:

Damp location rated

Feature 5:

Rated for Enclosed Fixtures

Feature 6:

50,000 Hour Functional Life

Feature 7:

5 Year Warranty

Feature 8:

Non-Dimmable

Feature 9:

G10q Base

Flourescent Equivalent:

32W

Housing Color:

Frost

Incandescent Equivalent:

50W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type A/B

Lamp Filament:

LED

Lens Finish:

Frost

Location Rating:

Damp

Long Description:

SATCO|NUVO’s LED 12-Inch Circline lamp is ideal for upgrading traditional fluorescent lighting to more energy efficient lighting in shallow, round ceiling and wall mounted fixtures. CCT selectable, choose from warm 3000K, neutral 4000K or choose 6500K to

Material:

Polycarbonate (PC)

Minimum Compartment Size:

Length 14.1 in. Width 14.1 in. Height: 3.5 in.

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO’s LED Circline lamps are ideal for upgrading traditional fluorescent lighting to more energy efficient lighting in shallow, round ceiling and wall mounted fixtures. CCT selectable, choose from warm 3000K, neutral 4000K or choose 6500K to bring

Short Description:

FC12T9/LED/CIR/CCT/DM/A-B

Specification Notes:

Only compatible with Electronic ballasts when installed in Type A mode. See ballast compatibility list for details. Not for use on magnetic ballasts.; Inner Diameter: 9.45 in.

Surge Protection:

Built-in surge protection - 2.5KV

Technology:

LED

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

25%

Wattage Selectable:

Watts:

16W

Additional Information:

Country of Origin- China
