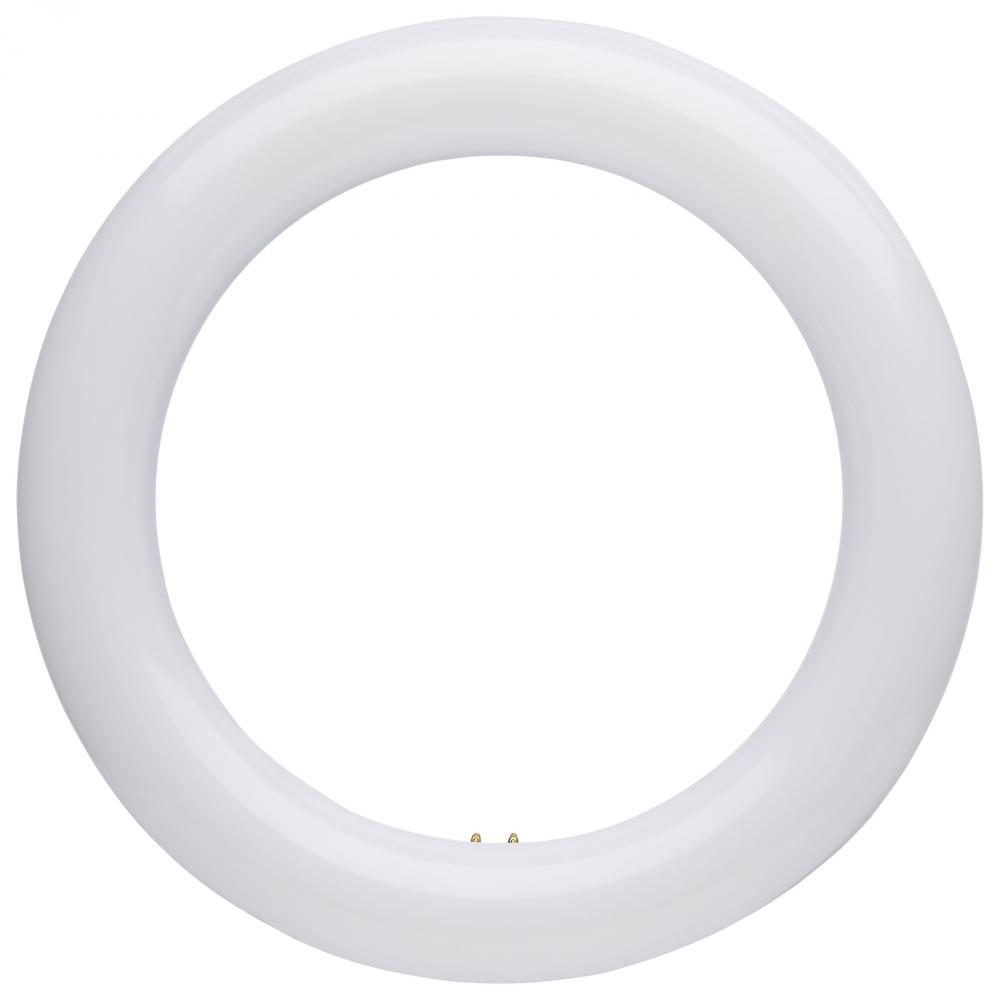

LED Circline; 11 Watt; T9; 3000K/4000K/6500K CCT Selectable; G10q Base; 120-277 Volt
Sub-Category:
LED T9 Circline
Bulb Dimmable:
Non-Dimmable
Bulb Kelvin:
3000K/4000K/6500K
EA Length:
8.460000000000001
Harmonized Codes:
8539.52.0010
Lumens:
1300L/1400L/1350L
Ship Carton Height:
8.460000000000001
Warranty:
5 Year Limited - 10 hr per day
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A, Electronic only) or Ballast Bypass (Type B)
Carton Cubic Feet:
0.0572
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Daylight
Efficacy:
118.18/127.27/122.73 LPW
Enclosed Fixture Use:
Yes
Feature 1:
3 CCT Selectable
Feature 10:
180 Degree Beam Angle
Feature 2:
Range Voltage 120V-277V
Feature 3:
Dual Mode Type A/B
Feature 4:
Damp location rated
Feature 5:
Rated for Enclosed Fixtures
Feature 6:
50,000 Hour Functional Life
Feature 7:
5 Year Warranty
Flourescent Equivalent:
22W
Incandescent Equivalent:
50W
Installation Notes:
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C:
Type A/B
Long Description:
SATCO|NUVO’s S16510 LED 8-Inch Circline lamp is ideal for upgrading traditional fluorescent lighting to more energy efficient lighting in shallow, round ceiling and wall mounted fixtures. CCT selectable, choose from warm 3000K, neutral 4000K or choose 65
Material:
Polycarbonate (PC)
Minimum Compartment Size:
Length 11.4 in. Width 11.4 in. Height: 3.5 in.
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Romance Copy:
SATCO|NUVO’s LED Circline lamps are ideal for upgrading traditional fluorescent lighting to more energy efficient lighting in shallow, round ceiling and wall mounted fixtures. CCT selectable, choose from warm 3000K, neutral 4000K or choose 6500K to bring
Short Description:
FC8T9/LED/CIR/CCT/DM/A-B
Specification Notes:
Only compatible with Electronic ballasts when installed in Type A mode. See ballast compatibility list for details. Not for use on magnetic ballasts.; Inner Diameter: 5.71 in.
Surge Protection:
Built-in surge protection - 2.5KV
Total Harmonic Distortion:
25%
