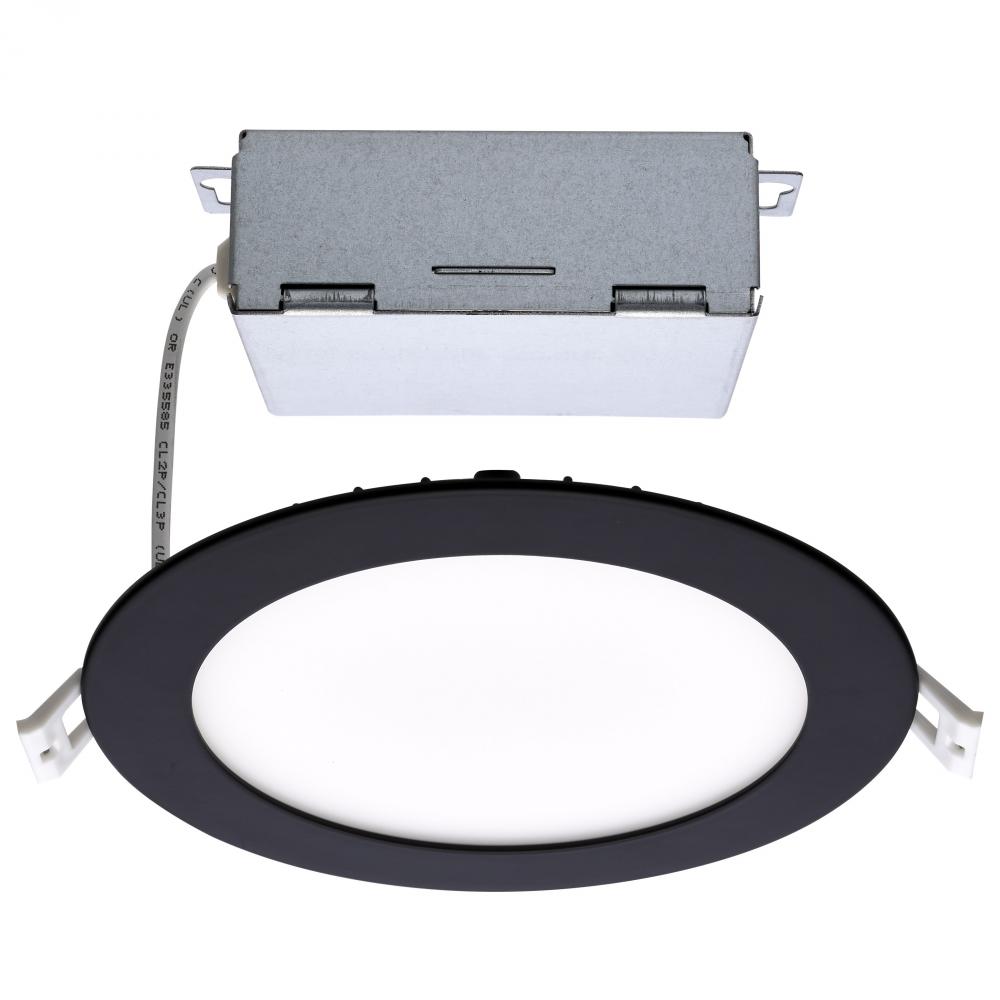

12 Watt; LED Direct Wire Downlight; Edge-lit; 6 inch; CCT Selectable; 120 volt; Dimmable; Round; (40UTW9E)

Image may not reflect selected features

No Image
Available

12 Watt; LED Direct Wire Downlight; Edge-lit; 6 inch; CCT Selectable; 120 volt; Dimmable; Round;

Call for Price

Item #:

40UTW9E

Dimensions:

Height: 0.90"

Width: 6.75"

Finish:

Black

Availability:

Manufacturer has 10945 items available.

Recommended Items

Description

Details

Downloads

12 Watt; LED Direct Wire Downlight; Edge-lit; 6 inch; CCT Selectable; 120 volt; Dimmable; Round; Remote Driver; Black Finish

Internal #:

40UTW9E

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Option:

Energy Star , LED , Prop 65

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Diameter:

6.75

Dimmable:

Yes-Dimmable

Each Height:

7.13

Each Length:

7.13

Each Width:

2.13

Lumens:

900L

Tariff Code:

9405.11.8010

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.100A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

108

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

6.188 in. Cutout

Connection:

Direct Wired

Country Of Origin:

Vietnam

CRI:

Dimmable Down To:

100 to 10 percent

Dimming Type:

Phase cut

Each Cube:

0.06270000000000001

Each Quantity:

Efficacy:

75.00 LPW

ES Category:

Downlight Recessed

ES Unique ID:

ESID-2732792

FCC Compliant:

Yes

Feature 1:

ColorQuick CCT Selectable

Feature 10:

120V

Feature 2:

90 CRI

Feature 3:

Wet location rated

Feature 4:

Dimmable

Feature 5:

IC Rated

Feature 6:

Air Tight Rated

Feature 7:

Title 24 Compliant

Feature 8:

ENERGY STAR Certified

Feature 9:

108-Degree Beam Angle

Finish Family:

Black

Fixture shape:

Round

IC Rated:

Yes

Incandescent Equivalent:

65W

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

IP Rating:

IP20

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO|NUVO’s S11875 LED Slimfit Downlight is among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. T

Material:

Aluminum

Mounting Procedure:

Recessed Direct Wire

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO’s LED Slimfit Downlights are among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. A vari

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

12WLED/DW/6/CCT-SEL/RND/RD/BK

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<20%

Trim Color:

Black

Trim Material:

Aluminum

Wattage Selectable:

Weight Lb.:
